Hybrid Fabric
GBTECH produces premium hybrid carbon-aramid fabrics combining carbon fiber, aramid fiber, and optional glass fibers to deliver superior strength, impact resistance, and lightweight performance. Available in various weaves, densities, widths, and colors, these hybrid fabrics are ideal for aerospace, automotive, sports equipment, protective gear, and high-end industrial applications. Customization options allow precise tailoring to your composite material needs.
Series Code: GB-CAF-MGC

Size Range
Weight 200–400 gsm | Width 1–1.5m (Customizable) | Length 100m/roll (Customizable)

Process
Woven + metallic glitter particles | Weave: Plain / Twill

Weave & Finish
Carbon fiber + metallic glitter | Color: Red / Blue / Green / Gold / Silver / Purple

Fiber Tow
1K / 3K / 6K / 12K / 24K available

Fiber Tensile Strength
T300 / T700 / T800 / T1000

Technical Parameters
Tensile Strength: 600–1000 MPa | Breaking Elongation: 1.2–2.0% | Curing Temperature: 120–180°C (depending on resin system)

Applications
Decorative panels | Automotive interiors | Sports equipment | Consumer electronics | Luxury goods

MOQ & Shipping
MOQ 10m | Fast shipping from US warehouse

Custom Service
Custom colors, weights & weaves available | Quote within 24 hours


Send your size details and get a quote within 24 hours

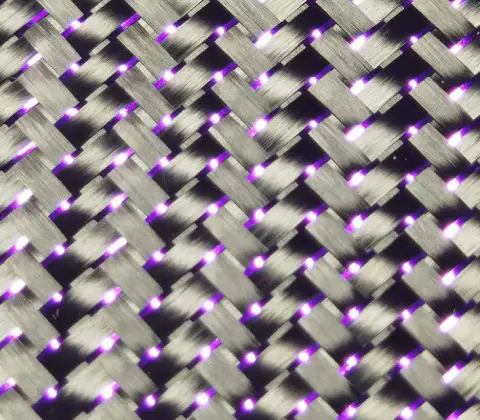

Metallic Glitter Carbon Fiber Fabric
Series Code: GB-CAF-IShape

Size Range
Weight 200 gsm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process
Jacquard weaving | Carbon + Kevlar hybrid | Weave pattern: H / I shape

Weave & Finish
Carbon/Kevlar hybrid | Color: Yellow / Red (Customizable)

Fiber Tow
Carbon: 1K / 3K / 6K / 12K | Kevlar: as required

Fiber Tensile Strength
Carbon: T300 / T700 / T800 | Kevlar: High-tenacity para-aramid

Applications
Aircraft tails & fuselages | Automotive parts | Synchronizers | Machine covers

MOQ & Shipping
MOQ 10m | Fast shipping from US warehouse

Custom Service
Custom colors, widths & patterns available | Quote within 24 hours


Send your size details and get a quote within 24 hours

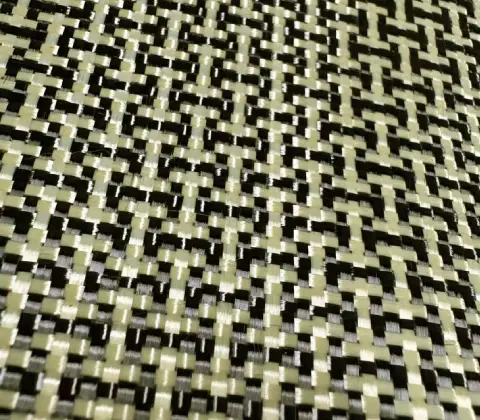

H / I shape Aramid-Carbon Hybrid Fabric
Series Code: GB-CAF-3D

Size Range
Weight 240 gsm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process
Jacquard weaving | Multi-material hybrid | Pattern: 3D Cuben Cubic Cross

Weave & Finish
Carbon + Aramid + Fiberglass | Color: Yellow / Blue / Red / Black (Customizable)

Fiber Tow
Carbon: 1K / 3K / 6K / 12K | Aramid & Fiberglass: as required

Fiber Tensile Strength
Carbon: T300 / T700 / T800 | Aramid: High-tenacity | Fiberglass: E-glass / S-glass

Applications
Car body | Hood | Rear wing | Bicycle frame | Computer case

MOQ & Shipping
MOQ 10m | Fast shipping from US warehouse

Custom Service
Custom colors, widths & patterns available | Quote within 24 hours

Send your size details and get a quote within 24 hours


3D Cuben Cubic Aramid-Carbon Hybrid Fabric
GB-CAF-F-FP

Size Range
Weight 200/220/240 gsm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process
Jacquard weaving | Multi-material hybrid | Pattern: Football Pattern / Honeycomb Pattern

Weave & Finish
Carbon + Aramid + Fiberglass | Color: Red / Yellow / Black / Blue (Customizable)

Fiber Tow
Carbon: 1K / 3K / 6K / 12K | Aramid & Fiberglass: as required

Fiber Tensile Strength
Carbon: T300 / T700 / T800 | Aramid: High-tenacity | Fiberglass: E-glass / S-glass

Applications
Bike frames | Handbags | Premium phone cases | Automotive customization

MOQ & Shipping
MOQ 10m | Fast shipping from US warehouse

Custom Service
Custom colors, widths & patterns available | Quote within 24 hours


Send your size details and get a quote within 24 hours


Football Pattern Aramid-Carbon Hybrid Fabric
Series Code: GB-CAF-F-CP

Size Range
Weight 240 gsm | Thickness 0.25 mm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process
Jacquard weaving | Carbon + Kevlar hybrid | Pattern: Camouflage

Weave & Finish
3K Carbon + 1500D Kevlar | Color: Blue / Black / Yellow / Red (Customizable)

Fiber Tow
Carbon: 3K | Kevlar: 1500D

Fiber Tensile Strength
Carbon: T300 / T700 / T800 | Kevlar: High-tenacity para-aramid

Applications
Aircraft tails & fuselages | Auto parts | Synchronizers | Machine covers

MOQ & Shipping
MOQ 10m | Fast shipping from US warehouse

Custom Service
Custom colors, widths & patterns available | Quote within 24 hours


Send your size details and get a quote within 24 hours

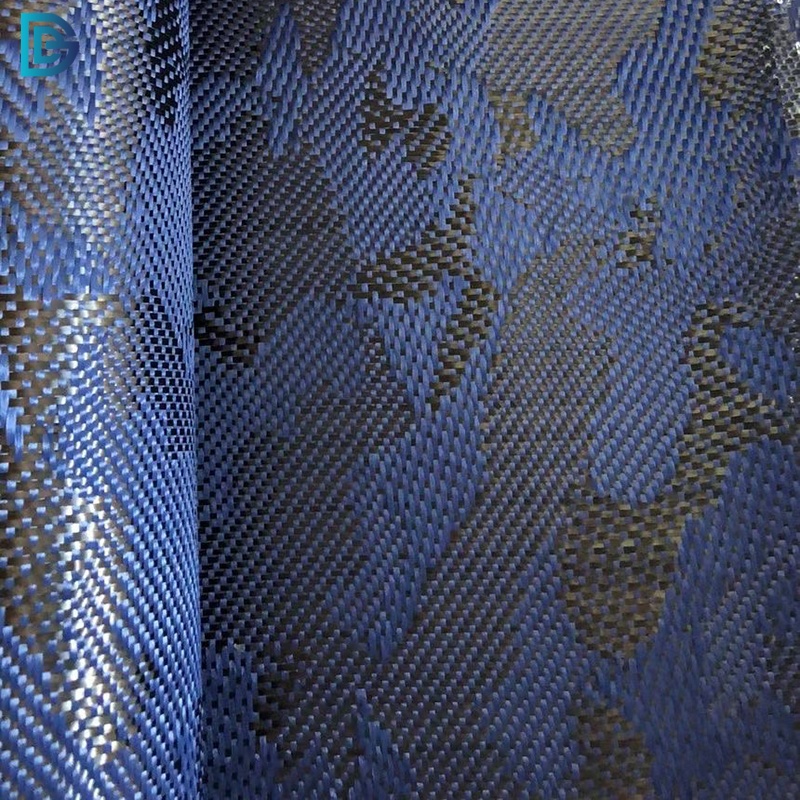

Camouflage Aramid-Carbon Hybrid Fabric
